notes/stacking_debug.scad

@@ -1,99 +0,0 @@
-/**
- * Used to workshop the stacking screw
- * */
-
-module stacking_debug () {
-    translate([0, 0, 72 + 72 + 36]) {
-        color("blue") gnal_spindle_top();
-    }
-    translate([0, 0, 72 + 72]) rotate([0, 180, 0]) intersection () {
-        gnal_50ft_top();
-        cylinder(r = 50 / 2, h = 50, center = true);
-    }
-
-    translate([0, 0, 72 + 30]) {
-        color("blue") rotate([0, 180, 0]) gnal_spindle_bottom();
-    }
-
-    translate([0, 0, 72 + 36]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    translate([0, 0, 36 + 30]) {
-        color("green") rotate([0, 180, 0]) gnal_stacking_spindle();
-    }
-
-    translate([0, 0, 72]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    translate([0, 0, 30]) {
-        color("green") rotate([0, 180, 0]) gnal_stacking_spindle();
-    }
-
-    translate([0, 0, 36]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    color("blue") translate([0, 0, 12 + 3]) gnal_spacer_16();
-    //#1 - bottom spiral
-    difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-        translate([0, 0, -8]) spiral_insert_void();
-    }
-
-    color("blue") translate([0, 0, -12]) gnal_spiral_bottom_insert_16();
-
-}
-
-module stacking_debug2 () {
-    translate([0, 0, 72 + 47]) {
-        color("blue") gnal_spindle_top();
-    }
-    translate([0, 0, 72 + 26]) rotate([0, 180, 0]) intersection () {
-        gnal_50ft_top();
-        cylinder(r = 50 / 2, h = 50, center = true);
-    }
-
-    translate([0, 0, 72 - 4]) {
-        color("blue") rotate([0, 180, 0]) gnal_spindle_bottom();
-    }
-
-    translate([0, 0, 72 + 8]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    translate([0, 0, 36 + 8]) {
-        color("green") rotate([0, 180, 0]) gnal_stacking_spindle();
-    }
-
-    translate([0, 0, 55.5]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    translate([0, 0, 20]) {
-        color("green") rotate([0, 180, 0]) gnal_stacking_spindle();
-    }
-
-    translate([0, 0, 32]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-    }
-
-    color("blue") translate([0, 0, 12 + 3 + 5]) gnal_spacer_16();
-    //#1 - bottom spiral
-    translate([0, 0, 8]) difference () {
-        cylinder(r = 50 / 2, h = 16, center = true);
-        cylinder(r = 22.5 / 2, h = 16 + 1, center = true);
-        translate([0, 0, -8]) spiral_insert_void();
-    }
-    color("blue") translate([0, 0, 11]) gnal_spiral_bottom_insert_16();
-    H = 120;
-    translate([0, 0, H / 2 - 2]) color("red") cube([1, 50, H], center = true);
-}

scad/100ft_v3/gnal_100ft.scad

@@ -3,8 +3,6 @@
 include <../libraries/gnal_v3.scad>;

 SPOKE_COUNT = 24;
-FN = 200;
-$fn = FN;

 module gnal_100ft_spiral (spiral_count = 60, od = 298.75, quarter = false) {
     outer_d = 299;
@@ -252,6 +250,9 @@ module gnal_100ft_top () {
     }
 }

+FN = 200;
+$fn = FN;
+
 module film_guide (rotations = 60, id = 45.55, spacing = 2.075, bottom = -2) {
     spiral(rotations, id, spacing, bottom, $fn);
     //reinforce outer spiral
@@ -277,20 +278,18 @@ if (PART == "spiral") {
     gnal_100ft_top();
 } else if (PART == "spacer") {
     gnal_spacer();
-} else if (PART == "spacer_16") {
-    gnal_spacer_16();
 } else if (PART == "insert_s8") {
     gnal_spiral_bottom_insert_s8();
 } else if (PART == "insert_16") {
     gnal_spiral_bottom_insert_16();
 } else if (PART == "insert_single") {
     gnal_spiral_bottom_insert_single();
+} else if (PART == "spacer_16") {
+    gnal_spacer_16();
 } else if (PART == "spindle_top") {
     gnal_spindle_top();
 } else if (PART == "spindle_bottom") {
     gnal_spindle_bottom();
 } else if (PART == "spindle_single") {
     gnal_spindle_single();
-} else if (PART == "spindle_stacking") {
-    rotate([0, 180, 0]) gnal_stacking_spindle();
 }

scad/50ft_v3/gnal_50ft.scad

@@ -3,8 +3,6 @@
 include <../libraries/gnal_v3.scad>;

 SPOKE_COUNT = 24;
-FN = 200;
-$fn = FN;

 module gnal_50ft_spiral (spiral_count = 40, od = 215.75, quarter = false) {
     outer_d = 215;
@@ -182,6 +180,9 @@ module gnal_50ft_top () {
     }
 }

+FN = 200;
+$fn = FN;
+
 module film_guide (rotations = 40, id = 45.55 - .5, spacing = 2.075, bottom = -2) {
     spiral(rotations, id, spacing, bottom, $fn);
     //reinforce outer spiral
@@ -192,6 +193,39 @@ module film_guide (rotations = 40, id = 45.55 - .5, spacing = 2.075, bottom = -2

 }

+module gnal_stacking_spindle () {
+    OD = 10.5 + .3;
+    IN_LEN = 21;
+
+    LEN = 17.1;
+    ALT_LEN = 27.1;
+    difference () {
+        union () {
+            gnal_spindle_base();
+            translate([0, 0, -23.75]) gnal_spacer_solid();
+        }
+        //inner screw negative
+        translate([0, 0, -30]) union() {
+            if (DEBUG) {
+                cylinder(r = OD / 2, h = IN_LEN);
+            } else {
+                metric_thread (diameter=OD, pitch=PITCH, thread_size = THREAD, length = IN_LEN);
+            }
+            translate([0, 0, 0.2]) {
+                if (DEBUG) {
+                    cylinder(r = OD / 2, h = IN_LEN);
+                } else {
+                    metric_thread (diameter=OD, pitch=PITCH, thread_size = THREAD, length = IN_LEN);
+                }
+            }
+        }
+   }
+
+    difference () {
+         outer_screw(LEN - 2);
+    }
+}
+
 PART="spiral";

 if (PART == "spiral") {
@@ -208,21 +242,22 @@ if (PART == "spiral") {
     gnal_50ft_top();

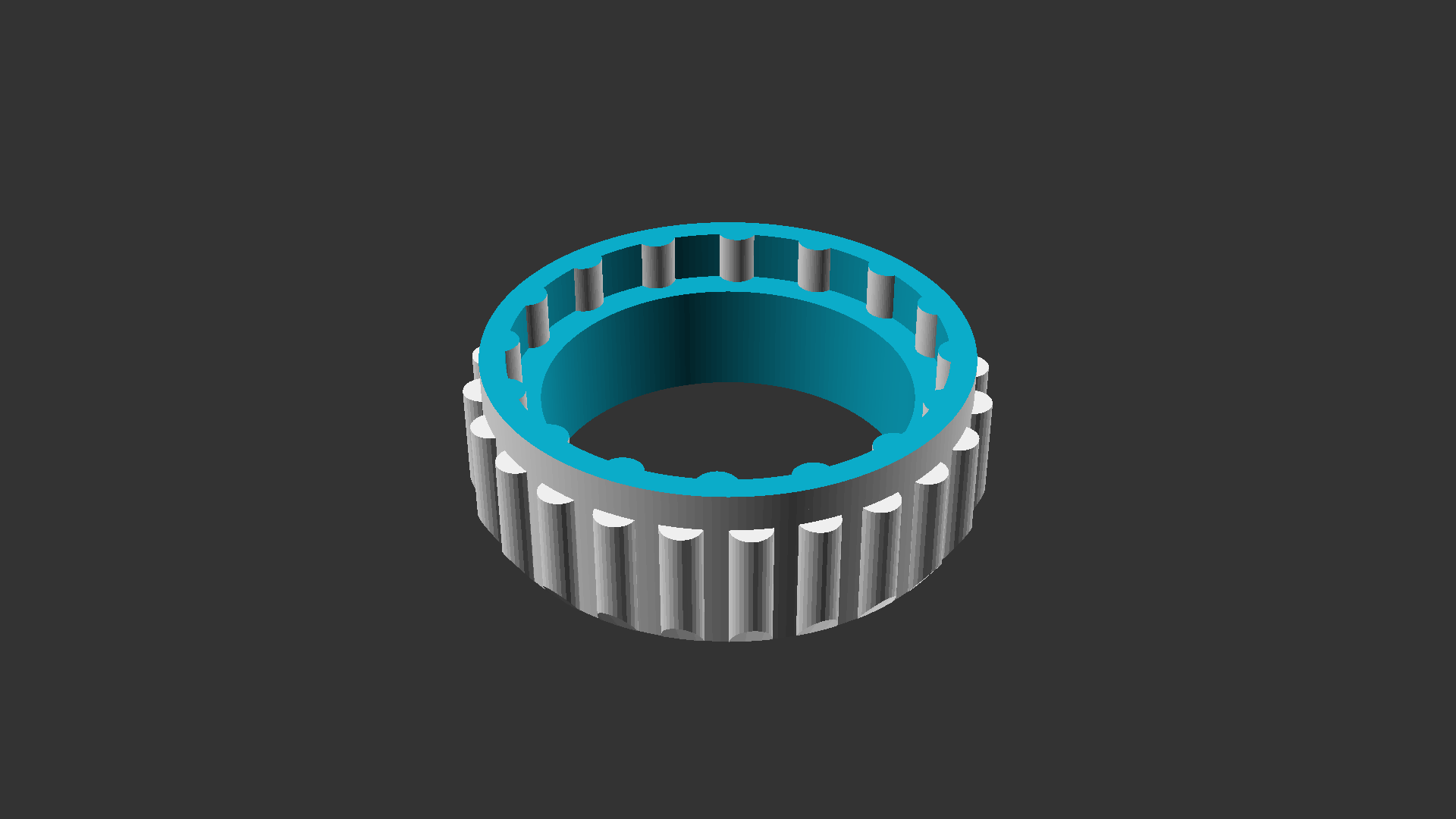

 } else if (PART == "spacer") {
     gnal_spacer();
-} else if (PART == "spacer_16") {
-    gnal_spacer_16();
 } else if (PART == "insert_s8") {
     gnal_spiral_bottom_insert_s8();
 } else if (PART == "insert_16") {
     gnal_spiral_bottom_insert_16();
 } else if (PART == "insert_single") {
     gnal_spiral_bottom_insert_single();
+} else if (PART == "spacer_16") {
+    gnal_spacer_16();
 } else if (PART == "spindle_top") {
     gnal_spindle_top();
 } else if (PART == "spindle_bottom") {
     gnal_spindle_bottom();
 } else if (PART == "spindle_single") {
-    gnal_spindle_single();
-} else if (PART == "spindle_stacking") {
+    gnal_spindle_top();
+} else if (PART == "stacking") {
+    //stacking();
     rotate([0, 180, 0]) gnal_stacking_spindle();
 } else if (PART == "spiral_test") {
     difference () {
@@ -236,8 +271,6 @@ if (DEBUG) {
     echo("WARNING: DEBUG is enabled");
 }

-/*
 echo($vpt);
 echo($vpr);
 echo($vpd);
-*/

scad/libraries/gnal_v3.scad

@@ -18,6 +18,7 @@ include <./Triangles.scad>;
  */

 DEBUG = false;
+
 FINE = 200;

 OD = 10 + .5;
@@ -237,7 +238,7 @@ module spiral_insert_void () {
 module gnal_spiral_bottom_insert_s8 () {
     $fn = 160;
     OD = 10.5 + .3;
-    void_d = 18 - .6;
+    void_d = 18 - .3;
     H = 17;
     D2 = INSERT_D;

@@ -278,7 +279,7 @@ module gnal_spiral_bottom_insert_16 () {
     $fn = 160;
     OD = 10.5 + .3;

-    void_d = 18 - .6;
+    void_d = 18 - .3;
     H = 17 + 8;
     D2 = INSERT_D;

@@ -331,7 +332,7 @@ module gnal_spiral_bottom_insert_16 () {
  **/
 module gnal_spiral_bottom_insert_single () {
     $fn = 160;
-    void_d = 18 - .6;
+    void_d = 18 - .3;
     H = 17;
     D2 = INSERT_D;

@@ -792,36 +793,3 @@ module gnal_spindle_single () {
         cylinder(r = 10 / 2, h = 21, center = true, $fn = FINE);
     }
 }
-
-module gnal_stacking_spindle () {
-    OD = 10.5 + .3;
-    IN_LEN = 21;
-
-    LEN = 17.1;
-    ALT_LEN = 27.1;
-    difference () {
-        union () {
-            gnal_spindle_base();
-            translate([0, 0, -23.75]) gnal_spacer_solid();
-        }
-        //inner screw negative
-        translate([0, 0, -30]) union() {
-            if (DEBUG) {
-                cylinder(r = OD / 2, h = IN_LEN);
-            } else {
-                metric_thread (diameter=OD, pitch=PITCH, thread_size = THREAD, length = IN_LEN);
-            }
-            translate([0, 0, 0.2]) {
-                if (DEBUG) {
-                    cylinder(r = OD / 2, h = IN_LEN);
-                } else {
-                    metric_thread (diameter=OD, pitch=PITCH, thread_size = THREAD, length = IN_LEN);
-                }
-            }
-        }
-   }
-
-    difference () {
-         outer_screw(LEN - 2);
-    }
-}

scripts/v3.sh

@@ -14,7 +14,7 @@ DIST=./stl
 CSG=./csg
 IMG=./img
 NOTES=./notes/${V}.csv
-STEP=false
+STEP=true
 LOGGING=true

 #"quarter_a" "quarter_b" "quarter_c" "quarter_d"
@@ -24,7 +24,6 @@ FILES=(
 	"spindle_bottom"
 	"spindle_top"
 	"spindle_single"
-	"spindle_stacking"
 	"insert_s8"
 	"insert_16"
 	"spacer"
@@ -119,9 +118,9 @@ render_part () {
 		fullPath=`realpath "${stl}"`
 		data="import(\"${fullPath}\");"
 		echo data > "${tmp}.scad"
-		openscad -o "$png" --csglimit=2000000 --imgsize=2048,2048 --colorscheme=DeepOcean "${tmp}.scad"
+		openscad -o "$png" --imgsize=2048,2048 --colorscheme=DeepOcean "${tmp}.scad"
 	else
-		openscad -o "$png" --csglimit=1000000 --imgsize=2048,2048 --colorscheme=DeepOcean -D "PART=\"${FILE}\"" "${scad}"
+		openscad -o "$png" --imgsize=2048,2048 --colorscheme=DeepOcean -D "PART=\"${FILE}\"" "${scad}"
 	fi
 }
