README.md

Film Adapters

This module contains various adapters for film reels and cores to allow for interoperability between tools designed for differnt formats.

Whats included:

16mm Core Adapter

This adapts the square spindles typically used for 16mm daylight spools to hold a 16mm film core. It can be used in cameras, rewinds and other gear that will hold a daylight spool.

16mm Core Adapter

Download STL

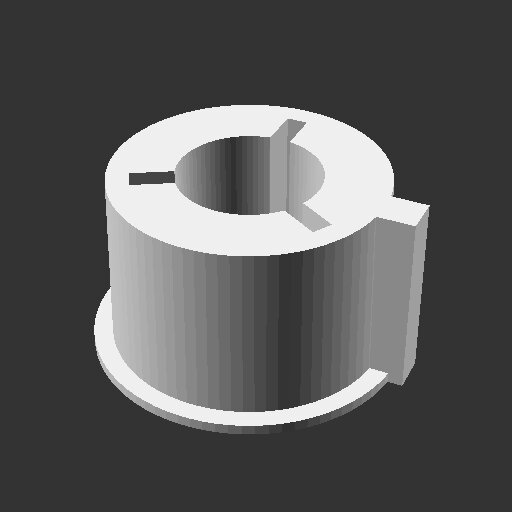

Super8 to 16mm Core Adapter

Super8 to 16mm Core Adapter

Download STL

16mm to Super8 Reel Adapter

This adapts the square spindles used by 16mm cameras and rewinds to handle Super8 reels.

16mm to Super8 Reel Adapter

Download STL
